Treatment

The Ecochlor® Ballast Water Treatment System effectively eliminates aquatic species, bacteria and other pathogens from ballast water with proven ClO2 technology.

  • Efficacy is not affected by turbidity, salinity or temperature

  • Low power and small footprint

  • Self-contained and fully automated

  • Designed for demanding marine use

  • No modifications to existing ballasting operations

ClO2 Generator: Unique Technology

The heart of our treatment system: a chlorine dioxide generator that delivers a dilute solution of chlorine dioxide (ClO2) to treat incoming ballast water. The fully automated, compact generator has few moving parts and is the same physical size for all systems.

A Modular Treatment System to Optimize Space

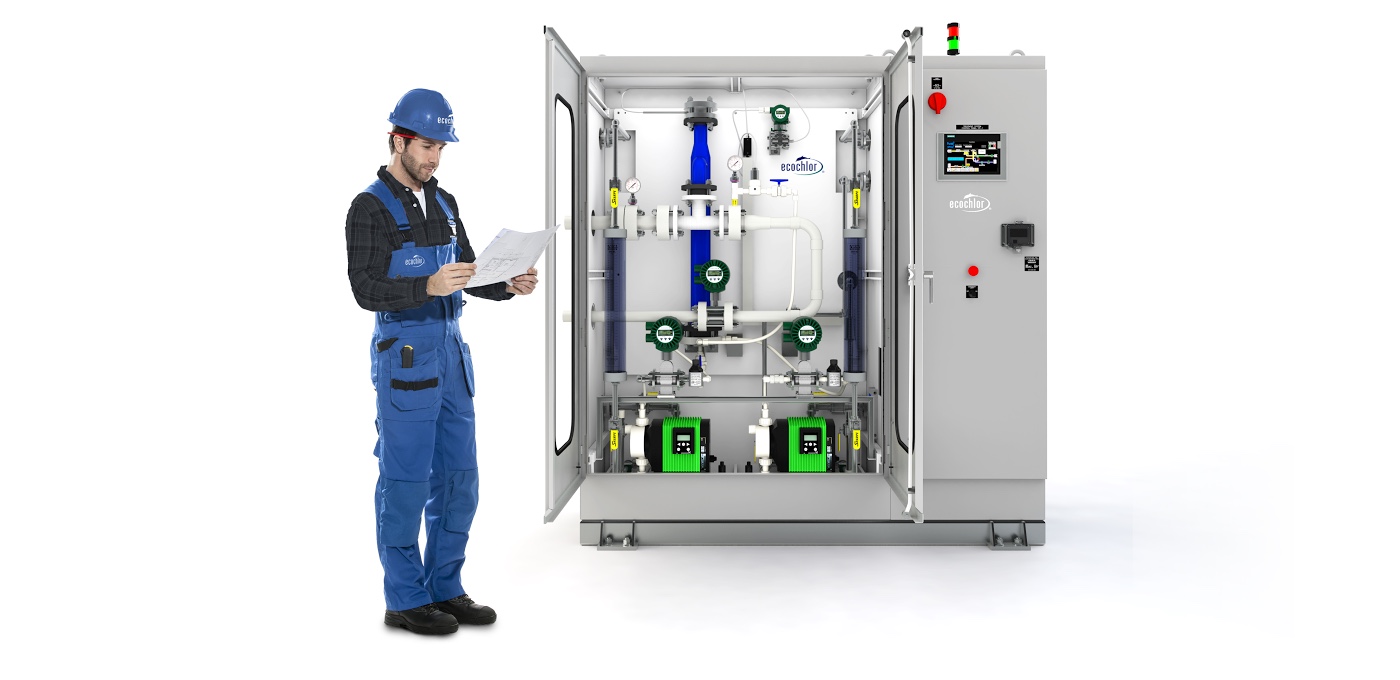

Ecochlor’s Treatment System is a rugged skid mounted system that consists of the ClO2 generator, self-contained chemical tanks, associated piping, valves and automated PLC controls.

Scalable: Sized for Ship and Ballast Water Needs

The Ecochlor® BWTS is easily scalable for different sizes of ships and ballast volumes. Larger systems are especially space efficient with ten times the capacity for less than twice the footprint. The larger systems are also particularly cost competitive when compared to other technologies.

  • Series 100 Model: ES-500-1.5 Capacity: 500 m3/hr. Tank Size: 1.5 m3
  • Series 150 Model: ES-1500-2.5 Capacity: 1,500 m3/hr. Tank Size: 2.5 m3
  • Series 200 Model: ES-3000-3.5 Capacity: 3,000 m3/hr. Tank Size: 3.5 m3
  • Series 250 Model: ES-5000-5.0 Capacity: 5,000 m3/hr. Tank Size: 5.0 m3

How it works

  • The generator operation is quite simple. When the system is off, there are no chemicals in the generator. The only moving parts are the internals of the chemical pumps.

  • When the generator receives a start command from the ship’s ballast water system, the supply water booster pump starts up and a small amount of water flows through the generator. The water can be seawater or fresh water and is only needed during ballasting. As water flows through a venturi, a vacuum is formed in the mixing chamber.

  • Once the vacuum is formed, the chemical pumps start and meter precise amounts of Purate BWT and sulfuric acid into the mixing chamber. Pump rates are controlled by the PLC in proportion to the ballast water flow rate.

  • As the Purate BWT and acid mix together in the mixing chamber, a chemical reaction takes place and ClO2 is formed, which then fills the mixing chamber.

  • The ClO2 is then drawn into the venturi by the vacuum created. The ClO2 becomes an entrained gas in the supply water, and is fed to the point of injection in the ballast water system.

Typical Ecochlor® System Specifications

    • Series 75
    • Model ES-400S-1.5
    • Capacity 400 m3/hr
    • Tank Size 1.5 m3
    • Treatment Footprint 8.5 m2
    • Supply Water 1.2 m3/hr
    • Filtration System
    • Quantity 1
    • Vertical Footprint (each) 0.3 m2
    • Horizontal Footprint (each) 1.7 m2
    • Power Requirements
    • Typical 4.8 kWh
    • Maximum 7.0 kWh
    • Series 100
    • Model ES-800S-1.5
    • Capacity 800 m3/hr
    • Tank Size 1.5 m3
    • Treatment Footprint 8.5 m2
    • Supply Water 2.7 m3/hr
    • Filtration System
    • Quantity 1
    • Vertical Footprint (each) 1.0 m2
    • Horizontal Footprint (each) 3.5 m2
    • Power Requirements
    • Typical 5.5 kWh
    • Maximum 9.1 kWh
    • Series 100
    • Model ES-1200S-2.0
    • Capacity 1,200 m3/hr
    • Tank Size 2.0 m3
    • Treatment Footprint 9.0 m2
    • Supply Water 7.7 m3/hr
    • Filtration System
    • Quantity 1
    • Vertical Footprint (each) 1.0 m2
    • Horizontal Footprint (each) 3.8 m2
    • Power Requirements
    • Typical 6.6 kWh
    • Maximum 10.2 kWh
    • Series 150
    • Model ES-2400-3.0
    • Capacity 2,400 m3/hr
    • Tank Size 3.0 m3
    • Treatment Footprint 9.5 m2
    • Supply Water 7.7 m3/hr
    • Filtration System
    • Quantity 2
    • Vertical Footprint (each) 1.0 m2
    • Horizontal Footprint (each) 3.8 m2
    • Power Requirements
    • Typical 7 kWh
    • Maximum 14.2 kWh
    • Series 200
    • Model ES-3300-4.0
    • Capacity 3,300 m3/hr
    • Tank Size 4.0 m3
    • Treatment Footprint 10.0 m2
    • Supply Water 14.0 m3/hr
    • Filtration System
    • Quantity 2
    • Vertical Footprint (each) 1.6 m2
    • Horizontal Footprint (each) 4.6 m2
    • Power Requirements
    • Typical 9.6 kWh
    • Maximum 24.0 kWh
    • Series 200
    • Model ES-4500-5.0
    • Capacity 4,500 m3/hr
    • Tank Size 5.0 m3
    • Treatment Footprint 10.0 m2
    • Supply Water 14.0 m3/hr
    • Filtration System
    • Quantity 2
    • Vertical Footprint (each) 2.0 m2
    • Horizontal Footprint (each) 5.6 m2
    • Power Requirements
    • Typical 10.4 kWh
    • Maximum 31.8 kWh
    • Series 250
    • Model ES-6600-6.0
    • Capacity 6,600 m3/hr
    • Tank Size 6.0 m3
    • Treatment Footprint 11.5 m2
    • Supply Water 26.0 m3/hr
    • Filtration System
    • Quantity 2
    • Vertical Footprint (each) 2.0 m2
    • Horizontal Footprint (each) 6.6 m2
    • Power Requirements
    • Typical 12.6 kWh
    • Maximum 40.8 kWh
    • Series 250
    • Model ES-8000-6.0
    • Capacity 8,000 m3/hr
    • Tank Size 6.0 m3
    • Treatment Footprint 11.5 m2
    • Supply Water 26.0 m3/hr
    • Filtration System
    • Quantity 4
    • Vertical Footprint (each) 2.0 m2
    • Horizontal Footprint (each) 6.1 m2
    • Power Requirements
    • Typical 12.0 kWh
    • Maximum 34.8 kWh
    • Series 250
    • Model ES-10000-6.0
    • Capacity 10,000 m3/hr
    • Tank Size 6.0 m3
    • Treatment Footprint 11.5 m2
    • Supply Water 26.0 m3/hr
    • Filtration System
    • Quantity 4
    • Vertical Footprint (each) 2.0 m2
    • Horizontal Footprint (each) 6.6 m2
    • Power Requirements
    • Typical 12.8 kWh
    • Maximum 42.2 kWh
    • Series 300
    • Model ES-12000-6.0
    • Capacity 12,000 m3/hr
    • Tank Size 6.0 m3
    • Treatment Footprint 11.5 m2
    • Supply Water 45.0 m3/hr
    • Filtration System
    • Quantity 4
    • Vertical Footprint (each) 2.8 m2
    • Horizontal Footprint (each) 6.6 m2
    • Power Requirements
    • Typical 19.8 kWh
    • Maximum 62.6 kWh
